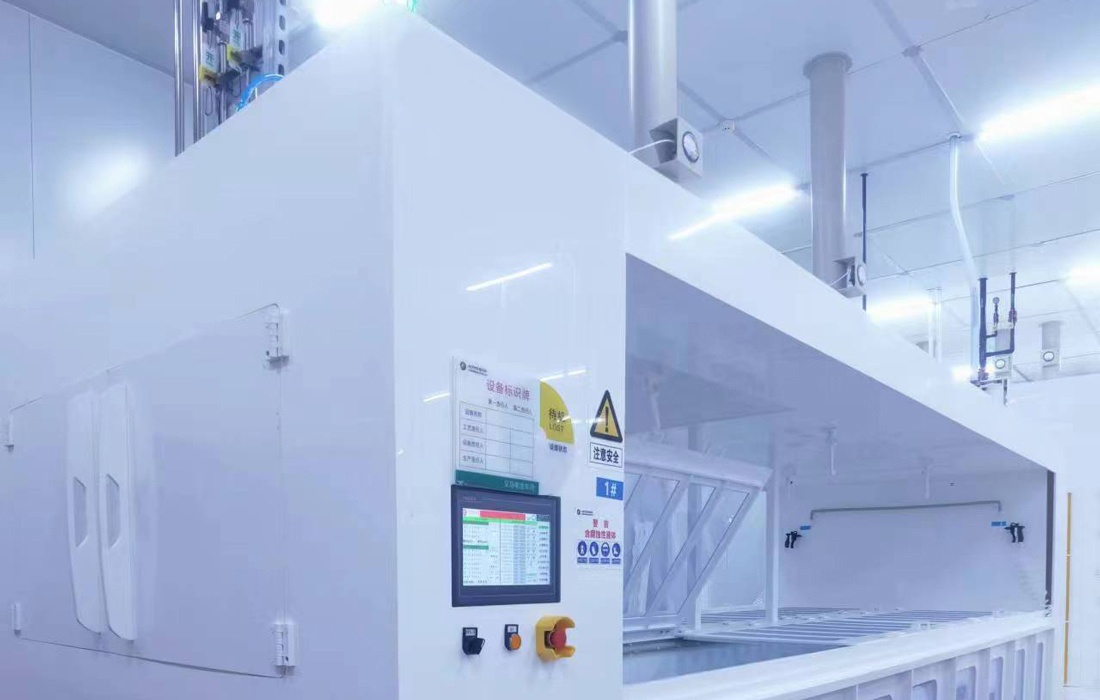

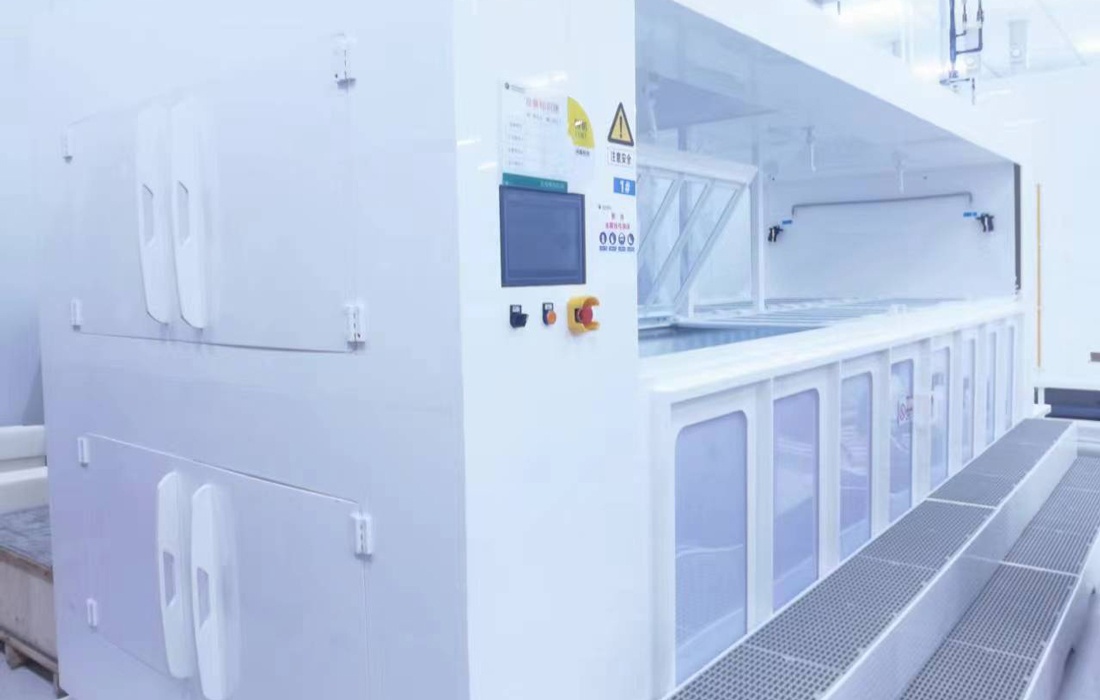

Quartz Boat(Tube) Cleaning Equipment
Product Name: Quartz Boat(Tube) Cleaning Equipment
Function: Used for the cleaning treatment of quartz boats and quartz tubes in boron diffusion, phosphorus diffusion, LPCVD, etc.
Process Flow: Pickling→Rinse→Drying
Features: The entire equipment is enclosed to prevent environmental pollution; the equipment features water-saving design and a function to collect overflow water from the rear tank for reuse in the spray tank; equipped with an automatic liquid supply and replenishment system with high accuracy.
|
Product Name |
Quartz Boat(Tube) Cleaning Equipment |
|
Model |
KSZDSYZ |
|
Route Application |
TOPCON、PERC |
|
Function |
Used for the cleaning treatment of quartz boats and quartz tubes in boron diffusion, phosphorus diffusion, LPCVD, etc. |
|
Process Flow |
Pickling→Rinse→Drying |
|
Compatible railboat |
"Small boat: 432mm221mm212mm (LWH) |
|
Capacity |
42+ sets/day (Capacity can be customized based on requirements) |
|
Power Consumption/ Voltage |
Main unit: 40KW/380V 50Hz 3-phase 5-wire system |
|
Features |
The entire equipment is enclosed to prevent environmental pollution; the equipment features water-saving design and a function to collect overflow water from the rear tank for reuse in the spray tank; equipped with an automatic liquid supply and replenishment system with high accuracy. |
